2015 starts an all new design era inside and out for the iconic Mustang. For the first time ever, since it’s introduction over 50 years ago, the Ford Mustang will be available around the globe! Gone are the days of the solid rear axle, as an independent rear suspension has found its way into the car for the first time in a decade. Combine all the technology the Ford Engineers have packed into this platform, along with a wide variety of engine choices, and this car will be a popular choice among tuners worldwide.
For starters we mated our compact double bellows air spring onto 30-level damping adjustable, monotube, threaded body struts with independent ride height adjustment. To keep your alignment straight, we top off the struts with adjustable camber plates made of T6061 red anodized aluminum. They utilize high quality spherical bearings for precise damper response and steering feel while providing up to 3 degrees of negative camber adjustment. We have even included shorter sway-bar end links to give you the most complete and lowest option for your Pony. Throw all this together and you come up with a front suspension that will allow you to go 5″ below stock!
To emphasize the performance capabilities of the all new independent rear suspension we replace the coil springs with smooth-riding double bellows air springs giving you a total of 5.1″ drop from factory. To help you stay firmly planted in the curves, and put big power to the ground, we provide 30-level damping adjustable, monotube threaded body shocks to compliment the front.
Product Fits:
2015-2023 Ford Mustang
NOTE: Does not fit models equipped with MagneRide adaptive suspension
Includes:

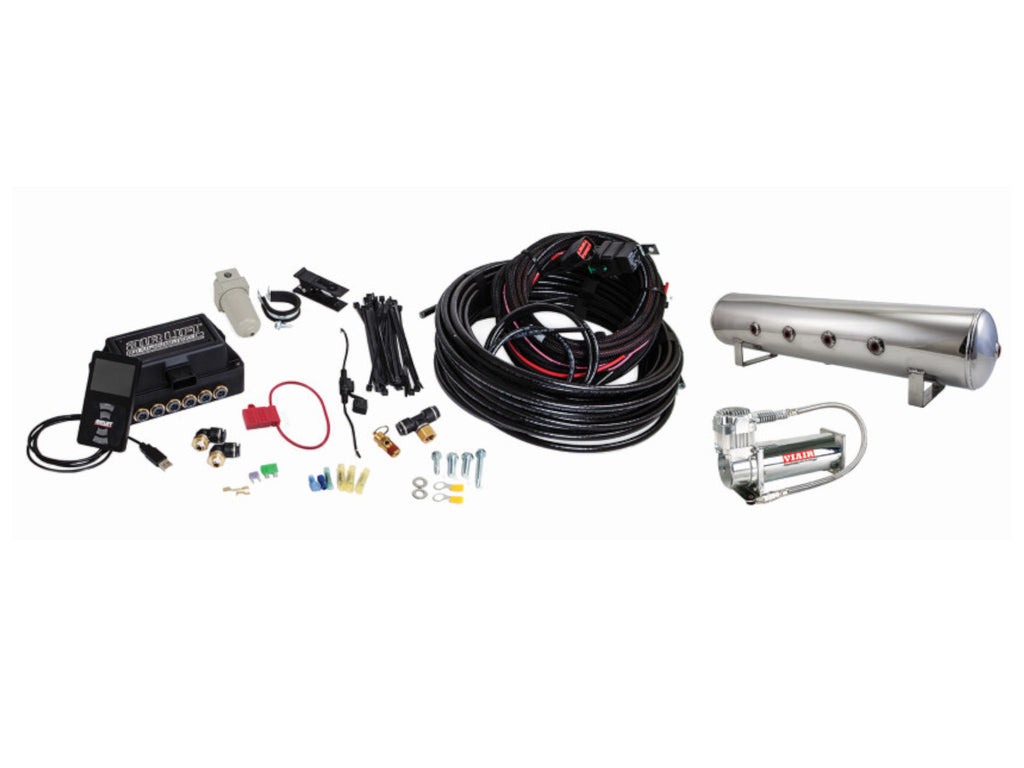

Air Lines and Air Management System: Select 1/4" or 3/8" and 3H or 3P Management (3H uses both Height & Pressure whereas 3P uses Pressure only)
Manifold Type: Push-to-Connect Ports (Threaded FNPT available at request)
Compressor: VIAIR 444C if selected
Tank Size: Select

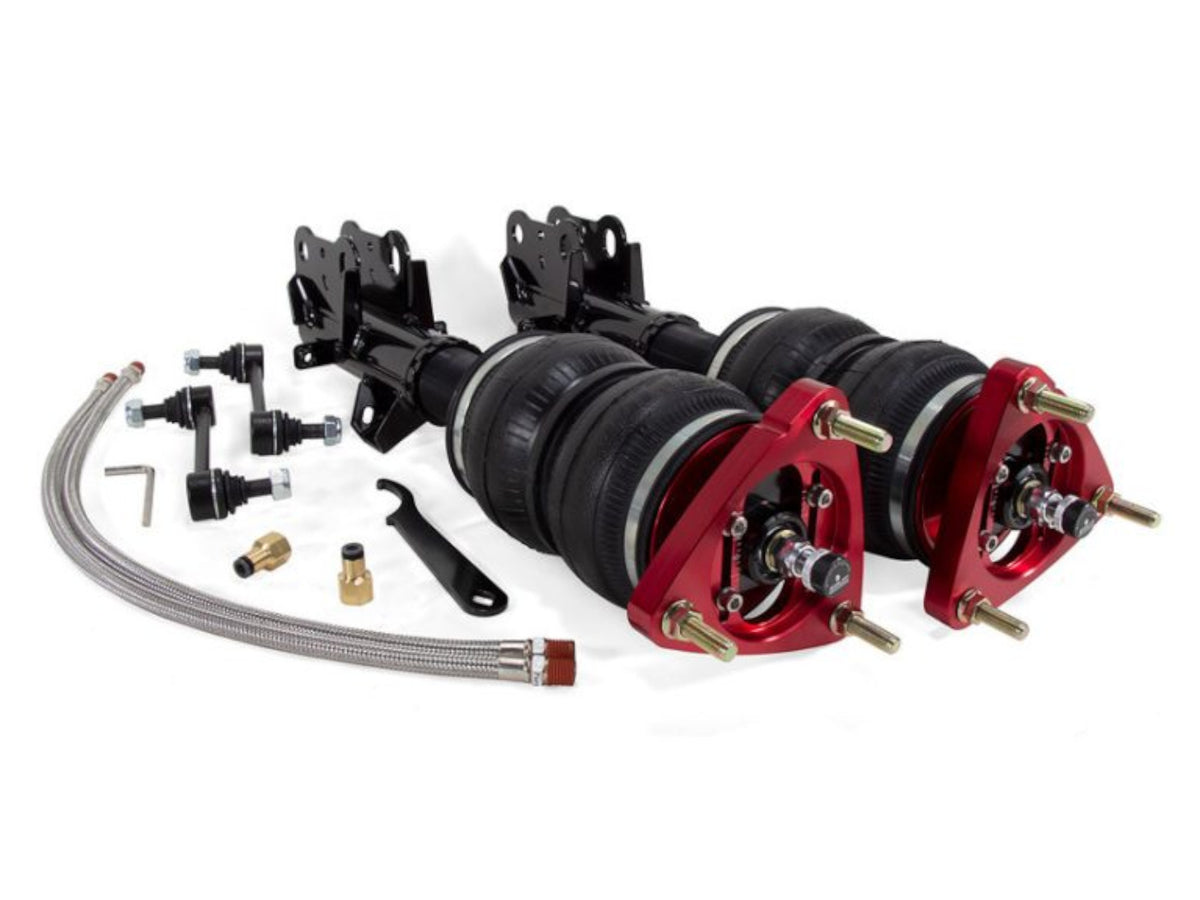

Front:
- 128mm/5.0" Drop
- Double Bellows Progressive Rate Springs
- 30-Level Adjustable Damping
- Proprietary Bolt-in Camber Plates
- Threaded, Adjustable Strut Mounts
- High Performance Monotube Strut
- High Quality Spherical Ball Upper Mounts
- Sway Bar Endlinks
- Braided Stainless Steel Leader Air Hoses

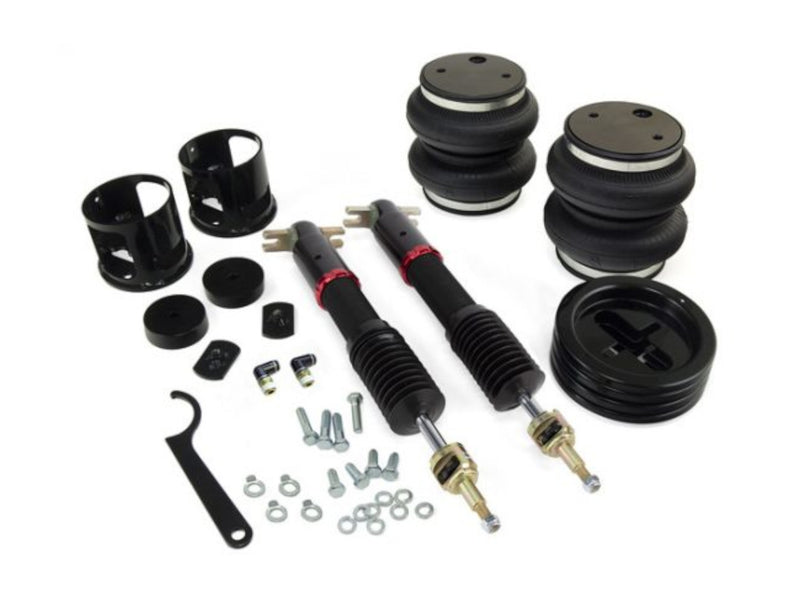

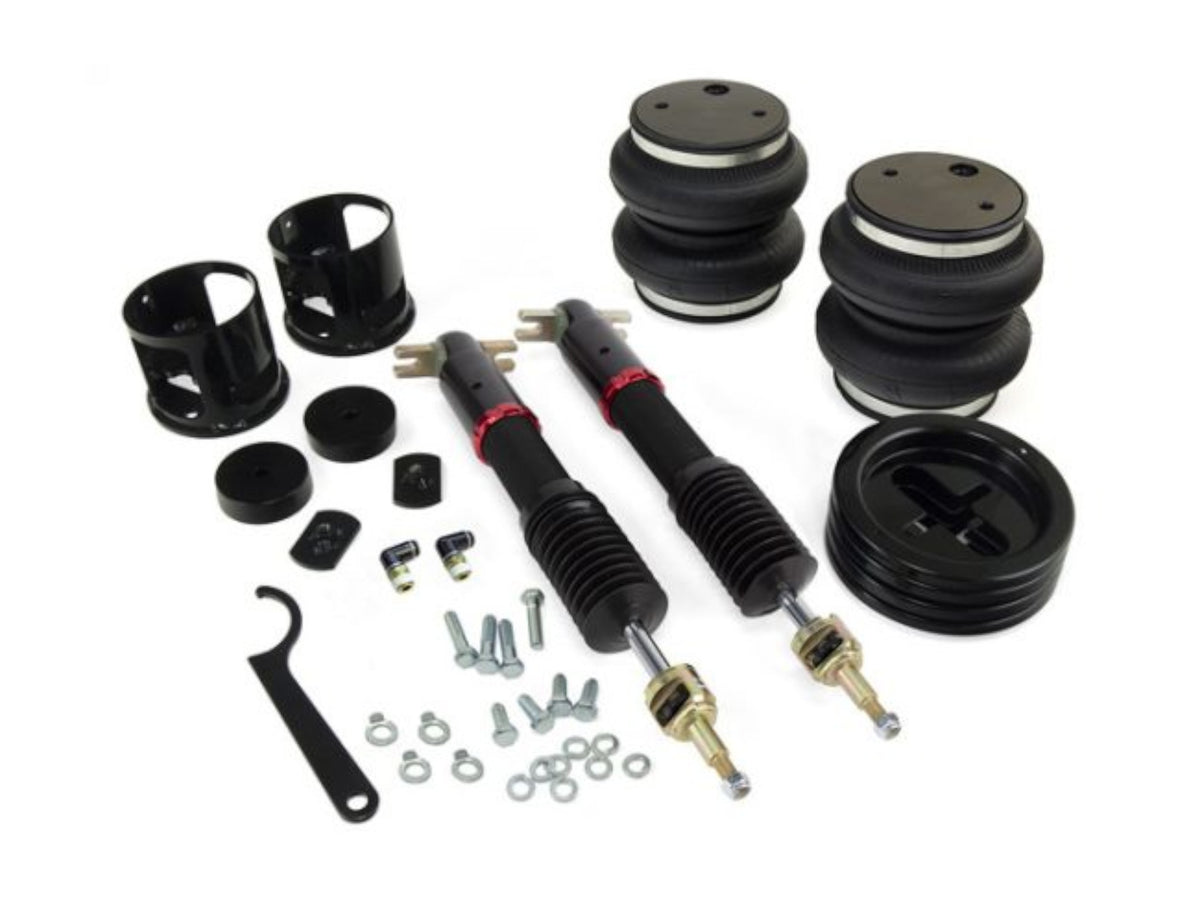

Rear:
- 130mm/5.1" Drop
- Double Bellows Progressive Rate Springs
- 30-Level Adjustable Damping
- Threaded, Adjustable Shock Mounts
- High Performance Monotube Shock
- Roll Plates
Shipping:
Generally ships within 2-3 business days.
Frequently Ask Questions:
As the leader in air suspension products for over 60 years, Air Lift is committed to delivering quality parts that last. To ensure longevity for the customer, the key suspension components have been tested on a durability rig for over one million cycles, which equates to 100,000 miles. With a one-year, unlimited-mileage warranty, you can purchase this kit with peace of mind. Ditch those coils and get to a new level of low!
What sets these struts way apart from the coil-over crowd is the addition of our adjustable, progressive rate air springs. These high-rate springs create a stable platform for aggressive track-driving while providing a level of comfort not typically found with lowered suspensions. By using this progressive style of air springs and maximizing available suspension travel, you’ll be able to ride low without the punishing ride. And since they allow ride height to be adjusted with a button, no longer do you suffer the curses of static suspension lowness! No more issues with speed bumps or steeply angled drives. Raise it up as high as stock to ride off-road without damaging the under body, and just think how easy it will be to load it on the trailer or get your jack underneath.
And the handling? Feel like hitting the track or your favorite twisty road? We’ve spent countless hours at the track, fine-tuning our suspensions to give you the best handling possible. With the twist of the damping knob, you can go from a smooth street ride to a race-car-type stiffness that will have you grinning when you take your first curve at speed.
So what does it take to have such a versatile suspension? It all starts with having a strong foundation. In this case, the struts: Air Lift uses 30-way adjustable, monotube struts—with a serious range of damping adjustment—that have been specially tuned to match the air springs. Monotube construction is the preferred choice in racing, and it’s the preferred choice for us; its sensitivity to small inputs, as well as the great ability to shed heat when pushed to the limit, make it top-notch in our book. The 30 clicks of adjustment aren’t just for fun, but they allow you, the user, to dial in your preferred handling feel or desired ride quality. The range goes from super-stiff to very soft, adjusting rebound and compression together, but with proportionally more rebound. The struts weigh considerably less than the coil spring parts you remove, reducing unsprung weight—a benefit to both ride and handling.
Installation is simple with Air Lift Performance’s detailed instruction manuals and only basic hand tools are required to complete the job. EVERYTHING is included with the combo kits: front air struts, rear air springs, and tuned shocks. There are no modifications required in front, and only four small holes to drill in the rear spring pocket area. If you can wire a stereo and swap suspension parts, you can install this system yourself!
Okay, so as cool as all this sounds…what does it all mean? No more sacrificing ride quality to get your car low and losing any type of load-carrying capabilities. Now you can have a nice ride while getting the stance you really want. Hauling a heavy load, or taking all of your friends out for a night on the town? With lowered coils, you would be scraping everywhere you tried to go. With an Air Lift Performance kit, now you can just push a button and level your car back out.
What’s the bottom line? Great looks, awesome performance, exceptional versatility, proven durability, and easy installation…only from AIR LIFT PERFORMANCE!
