Chevrolet did an amazing job with the fifth-generation Camaro—minus the fact that the stock ride height looks more like a truck than a muscle car! Sure, you can use coil springs or coilovers to help tidy up the stance, but then you have to worry about scraping everywhere you drive, and endure less than optimal ride quality. Air Lift Performance has developed the ultimate no-compromise suspension, that offers slot-car-like handling, the lowest possible drop for a Chevy Camaro, and amazing ride quality. How is all of that possible, you ask?

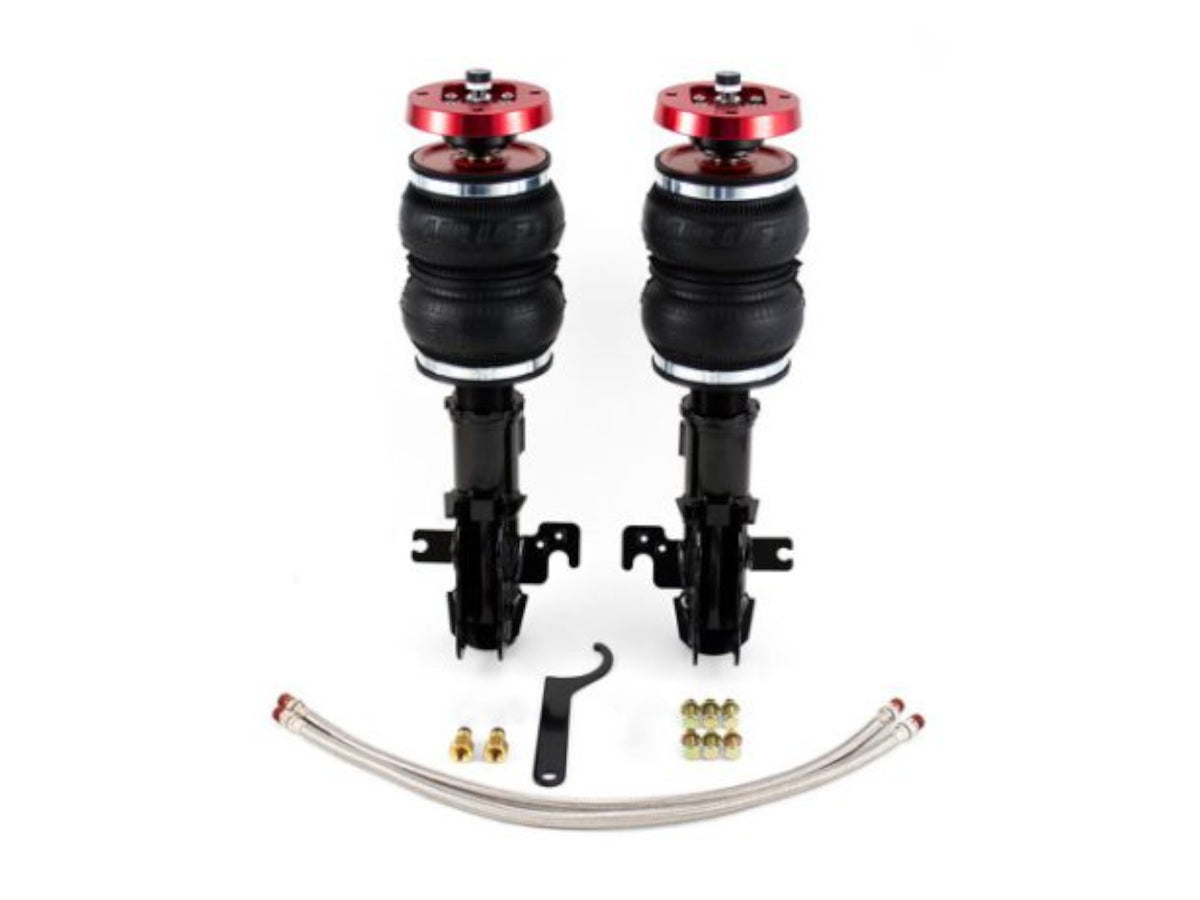

Starting up front, Air Lift Performance engineers took a threaded body, monotube, 30-way, damping, adjustable strut and topped it off with a smooth-riding, double-bellow air spring. This combination will allow you to drop the front of your Camaro to 4.2 inches below factory ride height, and will allow you to swallow a 22-inch wheel with ease. The engineers didn’t stop there! This strut also has an integrated adjustable camber plate made from T6061 aluminum, utilizing a high-quality spherical bearing for the best in suspension adjustability.

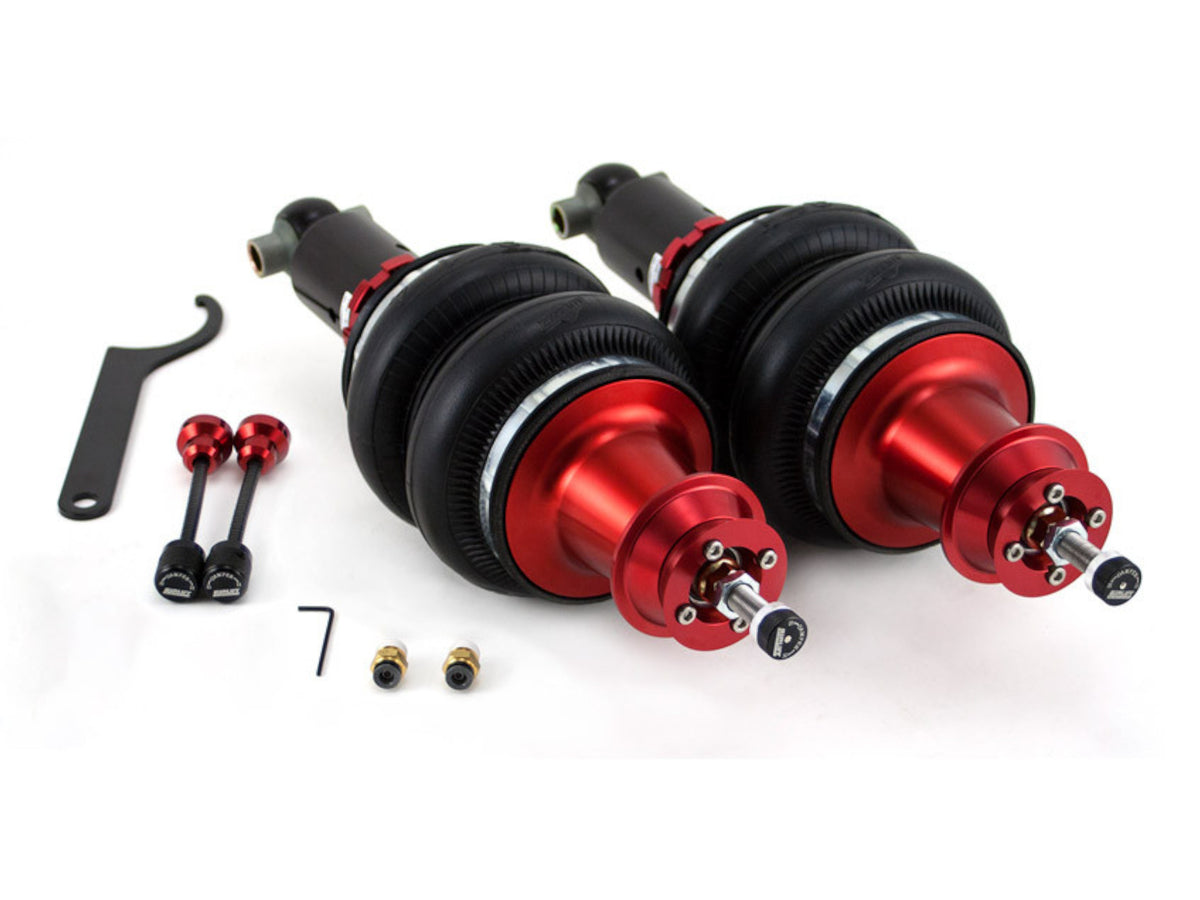

The rear kit mimics the front, with the same double-bellow-style bag wrapped around another 30-way damping, adjustable, monotube shock. A high-quality monoball bearing is nestled in a beautiful, red, anodized upper-shock mount. This automotive work of art will drop the rear of your Chevy Camaro 4.2 inches from the factory off-road stance, and requires minimal modification to bolt right in.
Product Fits:
2010-2015 Chevrolet Camaro (including convertibles)
2010-2015 Chevrolet Camaro SS
2014 Chevrolet Camaro Z/28
Modifications Req. Front: Requires drilling of front strut tower for mounting
Modifications Req. Rear: Remove section of factory upper spring mount

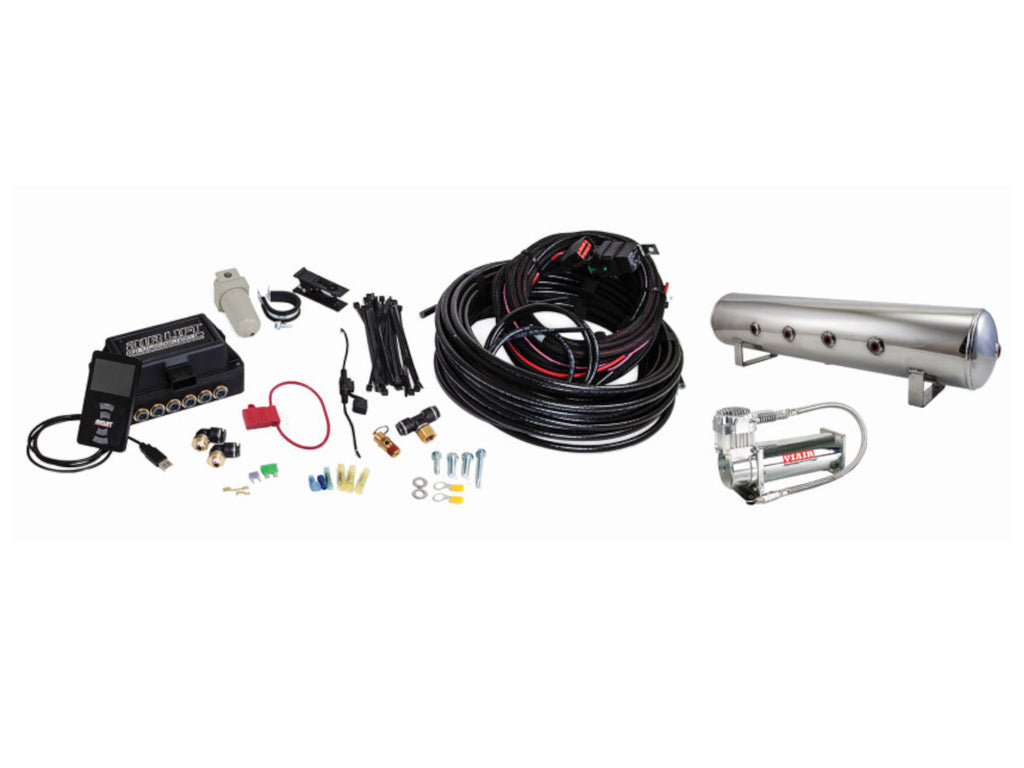

Includes:
Air Lines and Air Management System: Select 1/4" or 3/8" and 3H or 3P Management (3H uses both Height & Pressure whereas 3P uses Pressure only)
Manifold Type: Push-to-Connect Ports (Threaded FNPT available at request)
Compressor: VIAIR 444C if selected
Tank Size: Select
Front:
- 106mm/4.2" Drop
- 30-Level Adjustable Damping
- Proprietary Bolt-in Camber Plates
- Threaded, Adjustable Strut Mounts
- High Performance Monotube Strut
- High Quality Spherical Ball Upper Mounts
- Double Bellows Progressive Rate Springs
- Braided Stainless Steel Leader Air Hoses
Rear:
- 106mm/4.2" Drop
- Remote Damping Extenders
- Threaded, Adjustable Shock Mounts
- High Performance Monotube Shock
- High Quality Spherical Ball Upper Mounts
- Double Bellows Progressive Rate Springs
Shipping:
Generally ships within 2-3 business days.
Frequently Ask Questions:
As the leader in air suspension products for over 60 years, Air Lift is committed to delivering quality parts that last. To ensure longevity for the customer, the key suspension components have been tested on a durability rig for over one million cycles, which equates to 100,000 miles. With a one-year, unlimited-mileage warranty, you can purchase this kit with peace of mind. Ditch those coils and get to a new level of low!
What sets these struts way apart from the coil-over crowd is the addition of our adjustable, progressive rate air springs. These high-rate springs create a stable platform for aggressive track-driving while providing a level of comfort not typically found with lowered suspensions. By using this progressive style of air springs and maximizing available suspension travel, you’ll be able to ride low without the punishing ride. And since they allow ride height to be adjusted with a button, no longer do you suffer the curses of static suspension lowness! No more issues with speed bumps or steeply angled drives. Raise it up as high as stock to ride off-road without damaging the under body, and just think how easy it will be to load it on the trailer or get your jack underneath.
And the handling? Feel like hitting the track or your favorite twisty road? We’ve spent countless hours at the track, fine-tuning our suspensions to give you the best handling possible. With the twist of the damping knob, you can go from a smooth street ride to a race-car-type stiffness that will have you grinning when you take your first curve at speed.
So what does it take to have such a versatile suspension? It all starts with having a strong foundation. In this case, the struts: Air Lift uses 30-way adjustable, monotube struts—with a serious range of damping adjustment—that have been specially tuned to match the air springs. Monotube construction is the preferred choice in racing, and it’s the preferred choice for us; its sensitivity to small inputs, as well as the great ability to shed heat when pushed to the limit, make it top-notch in our book. The 30 clicks of adjustment aren’t just for fun, but they allow you, the user, to dial in your preferred handling feel or desired ride quality. The range goes from super-stiff to very soft, adjusting rebound and compression together, but with proportionally more rebound. The struts weigh considerably less than the coil spring parts you remove, reducing unsprung weight—a benefit to both ride and handling.
Installation is simple with Air Lift Performance’s detailed instruction manuals and only basic hand tools are required to complete the job. EVERYTHING is included with the combo kits: front air struts, rear air springs, and tuned shocks. There are no modifications required in front, and only four small holes to drill in the rear spring pocket area. If you can wire a stereo and swap suspension parts, you can install this system yourself!
Okay, so as cool as all this sounds…what does it all mean? No more sacrificing ride quality to get your car low and losing any type of load-carrying capabilities. Now you can have a nice ride while getting the stance you really want. Hauling a heavy load, or taking all of your friends out for a night on the town? With lowered coils, you would be scraping everywhere you tried to go. With an Air Lift Performance kit, now you can just push a button and level your car back out.
What’s the bottom line? Great looks, awesome performance, exceptional versatility, proven durability, and easy installation…only from AIR LIFT PERFORMANCE!
